Supplied accessories
- 1x Sennheiser EW112 G4 Sender
- 1x Sennheiser EW112/135 G4 receiver
- 1x Sennheiser XLR cable --> minijack
- 4x AA batteries
- 1x Backplate incl. cold-shoe mount
- 1x Sennheiser ME 2-II lavalier microphone
- 1x Sennheiser CL1 3.5 mm Haakse Jack Kabel (0.5 meter)
- 1x Windscreen
Top specs
- Rugged Bodypack Transmitter
- Diversity Camera-Mount Receiver
- 1680 Auto-Scan Frequencies
- Up to 12 Mics on Set / 330' Range
- ME 2-II Omnidirectional Lav Mic

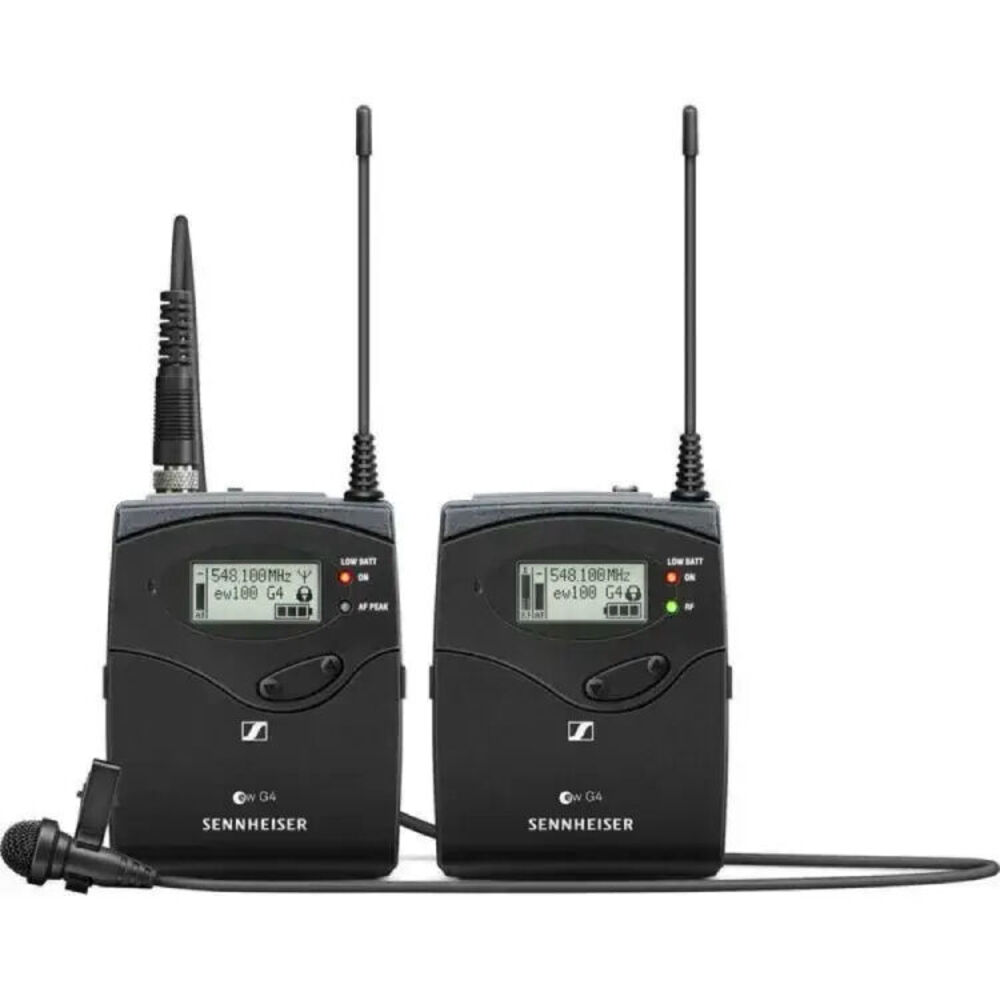

The Sennheiser EW 512P G4 is a professional wireless lavalier microphone system, ideal for filmmakers and content creators.
The system includes an MKE 2 omnidirectional lavalier microphone, known for its natural sound reproduction and compact design. It features a bodypack transmitter and a receiver that easily mounts to a camera.
With a range of up to 100.6 meters (line of sight) and the ability to use up to 32 systems simultaneously, it's suitable for larger productions and events. The system provides a reliable battery life of up to 8 hours, making it perfect for extended recording sessions.
All sets at Budgetcam work with the B-range.
Sennheiser EW 112P G4 Specs
System
| Wireless Transmission | Analog UHF |
| Number of RF Channels | 1680 |
| Included Transmitters | 1 x Bodypack with Microphone |
| Diversity | Antenna Diversity |
| RF Frequency Band | A:
516 to 558 MHz |
| RF Bandwidth | 42 MHz |
| Frequency Step Size | 25 kHz |
| Max Operating Range | 330' / 100.6 m (Line of Sight) |
| Max Systems per Setup | 12 |
| Deviation | 48 kHz (Peak) |
| Modulation | Wideband FM |
Receiver
| Form Factor | Camera-Mount |
| Mounting Options | Shoe-Mount (with Included Hardware) |
| Antenna | 1 x Flexible Whip, Fixed |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable) |
| Gain Range | 42 dB (6 dB Steps) |
| Audio Output Level | +12 dBu |
| Squelch | 5 to 25 dBμV |
| Adjacent Channel Isolation | >65 dB |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included)
1 x Sennheiser Accupack (Not Included) |
| Approx. Battery Life | 8 Hours (Alkaline) |
| Display & Indicators | 1 x Backlit LCD (Battery Status, Output Level, RF Level) |
| Housing | Metal |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm |
| Weight | 5.6 oz / 160 g (with Batteries) |
Transmitter
| Form Factor | Bodypack |
| RF Output Power | 30 mW |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
| Muting | Mute Switch |
| Audio Input Level | 3 V RMS (Max) |
| Gain Range | 60 dB (3 dB Steps) |
| Frequency Response | 80 Hz to 18 kHz (Mic)
25 Hz to 18 kHz (Line) |
| Sync Method | IR |
| Antenna | 1 x Flexible Whip, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included)
1 x Sennheiser Accupack (Not Included) |
| Approx. Battery Life | 8 Hours (Alkaline) |
| Display & Indicators | 1 x Backlit LCD (Audio Level, Battery Status, Signal Strength) |
| Housing | Metal |
| Dimensions | 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm |
| Weight | 5.6 oz / 160 g (with Batteries) |
Microphone
| Form Factor | Lavalier |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Range | 50 Hz to 18 kHz |
| Equivalent Noise Level | 36 dB |
| Maximum SPL | 130 dB SPL Peak |
| Sensitivity | 20 mV/Pa |
| Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
| Cable Length | 5.25' / 1.6 m |
| Operating Voltage | 7.5 V |
